Choosing the Right Stainless Steel Spring Hinges for Industrial Doors

Stainless steel spring hinges are robust butt hinges with an integral tor

sion spring in the barrel. In effect they act like standard door hinges but use a coiled spring to control closing force. Made from high-grade stainless steel (often type 304 or 316), these hinges resist rust and mechanical wear. This corrosion resistance makes them ideal for outdoor, coastal, or industrial environments.

TDC’s self-closing stainless-steel hinges designed for smooth, automatic closure with reliable, long-term performance.

>Check our hinges catalog here.

Advantages of Using Stainless Steel Spring Hinges

Stainless steel spring hinges combine durable materials with automatic action. The corrosion resistance of stainless steel means the hinge stays functional in damp, saline, or chemical environments.

Built-in ball bearings and lubrication grooves (common on commercial hinges) minimize friction under load, yielding smoother closing even on heavy doors. In fact, TDC’s stainless hinges are engineered for long-lasting rustproof protection and quiet, smooth operation.

The built-in spring offers automatic closure, which is a major safety and convenience feature. After a door is opened, the spring unwinds and then steadily pulls the door shut – providing a built-in closer mechanism.

This automatic closing helps maintain security by preventing doors from being accidentally left open. High-quality spring hinges can be specified for fire- and security doors; many models meet UL/ANSI fire-door standards.

TL;DR :

· Durability: Hardened stainless-steel construction with long fatigue life. Rated for medium to heavy doors (often ANSI Grade 1).

· Corrosion resistance: Excellent performance in moist, salty, or corrosive atmospheres.

· Automatic closing: Built-in spring mechanism ensures doors close on their own, enhancing security and climate control.

· Low maintenance: Ball bearings and quality finishing minimize wear. Occasional lubrication keeps pivots free (see maintenance tips below).

Types of Spring Hinges

Spring hinges come in a few common configurations to suit different doors:

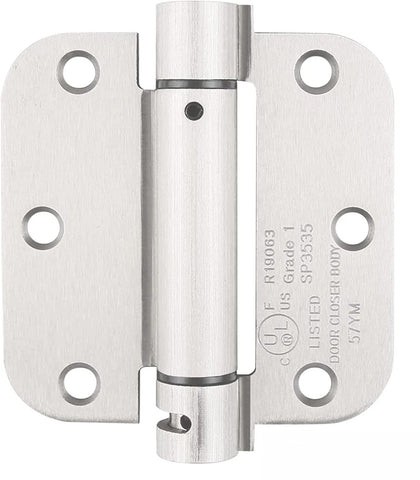

· Single-Action Hinges:  These allow a door to swing one way only (either inward or outward) and then automatically pull it closed. Single-action hinges are typical for interior or exterior doors that only need to swing in one direction. Most residential spring hinges are of this type.

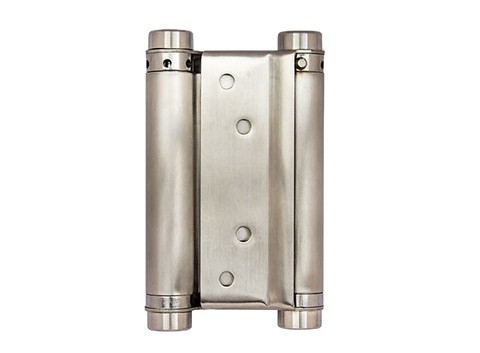

· Double-Action (Bi-Directional) Hinges:  Also called saloon or café-door hinges, these allow doors to swing both inward and outward and then automatically return to center. A double-action hinge contains springs for each swing direction, making it ideal for doors in busy areas (e.g. kitchens or bars) where hands-free double swing is needed. After a person passes through, the hinge forces the door back to the closed position.

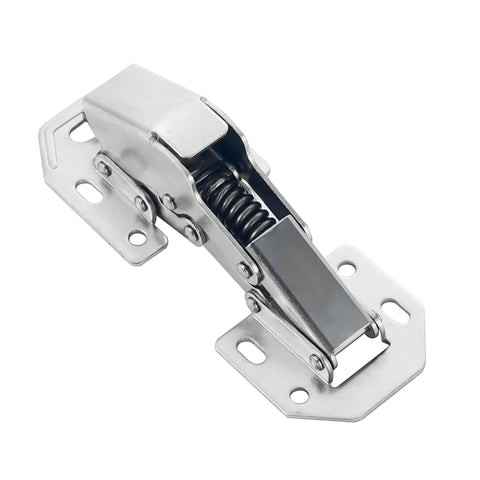

· Concealed (Hidden) Spring Hinges:  These are fully recessed into the door frame so the mechanism is invisible when closed. Concealed springs provide a clean look and are often used in high-end cabinetry or security doors. Despite being hidden, they still perform automatic closing like other spring hinges.

Select The Suitable Stainless Steel Spring Hinge

When selecting a stainless steel spring hinge, match the size and strength to your door’s weight and height. Spring hinges are typically made in standard full-mortise sizes: 3½×3½”, 4×4”, 4½×4” and 4½×4½” (height × width). Larger hinges (4½″) provide more closing force and load capacity.

Choose a model rated for your door’s weight. Many manufacturers specify a weight range per hinge; for instance, a 4×4 spring hinge might support ~70 lbs, while a 4½×4½″ hinge could hold up to ~150 lbs. Always verify the hinge’s load rating and use enough hinges for the total weight.

Use at least two hinges on doors up to about 7–8 feet in height. For taller or heavier doors, a third spring hinge is typically added.

Common rule: Two hinges for doors up to 5’, plus one extra hinge for each additional 2.5’ of height. Overhead closers may require their own hinges too. Remember that spring hinges are usually full-mortise only (no half-mortise available).

Key Selection Points:

· Door Weight & Frequency:  Industrial doors or gates require heavy-duty hinges. Check that the spring’s force and hinge thickness suit frequent use.

· Environment:  In corrosive or outdoor settings, opt for stainless steel (vs. plain steel). For extreme marine or chemical exposure, 316 stainless hinges offer extra corrosion resistance.

· Fire/Code Requirements:  Many stainless spring hinges are fire-rated/UL-listed; ensure they meet local building codes if used on fire-rated doors.

· Handing:  Spring hinges are non-handed – the same hinge works on left or right swing doors.

· Accessories:  Include both wood and machine screws (most kits supply both), so the hinge can mount on wooden or metal frames.

Installation and Maintenance of Spring Hinges

Proper installation ensures long-term durability and reliable automatic closing. Follow these steps to install stainless steel spring hinges correctly:

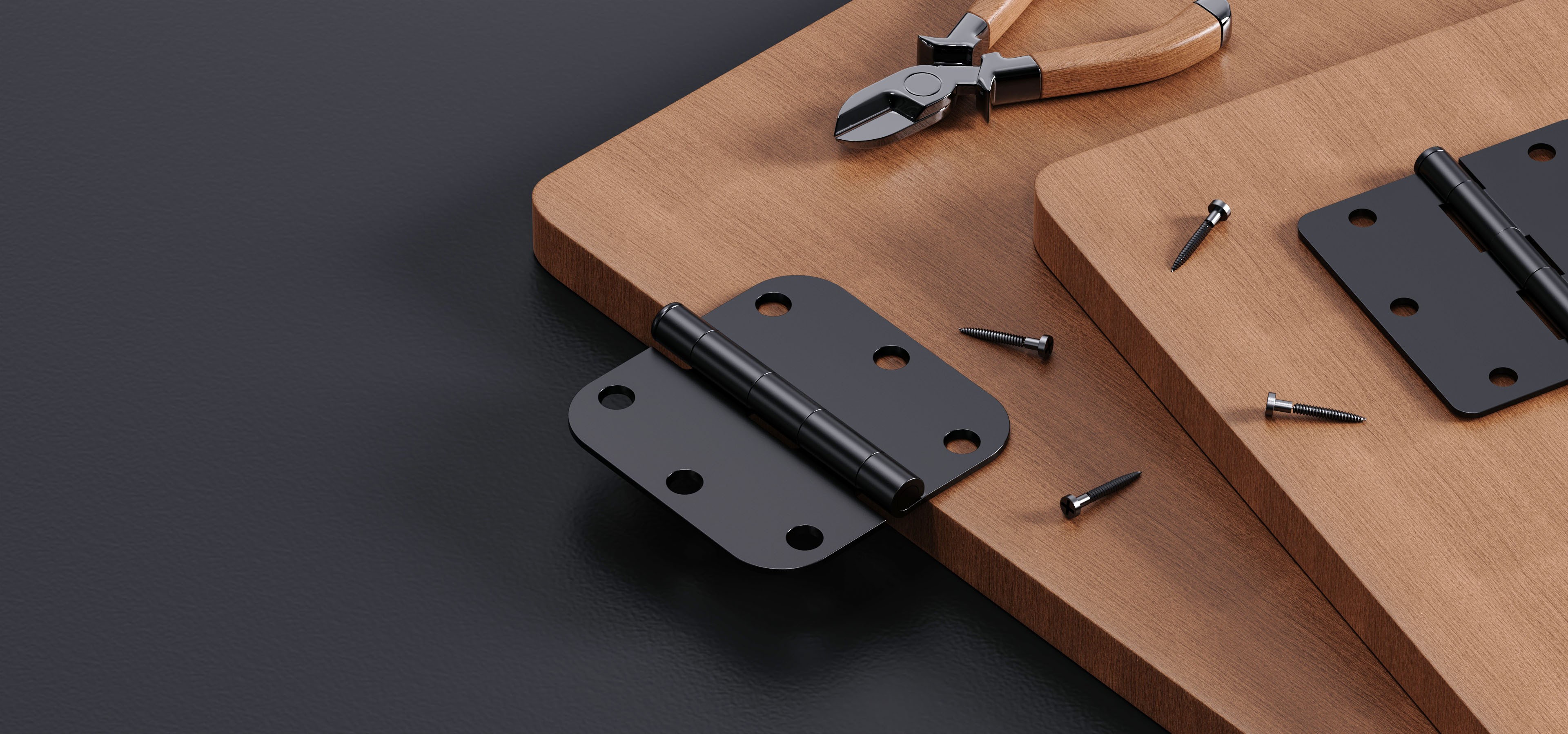

Step 1: Mark Hinge Positions

· Place the door in the frame or opening.

· Mark the positions for the top and bottom hinges (and a third hinge if the door is tall or heavy).

· Standard spacing is 7 inches from the top and 11 inches from the bottom of the door.

Step 2: Pre-Drill Screw Holes

· Align the hinge leaf on the marked position.

· Use a pencil or marker to outline the screw holes.

· Pre-drill pilot holes using a bit slightly smaller than the screw diameter to prevent wood splitting or misalignment.

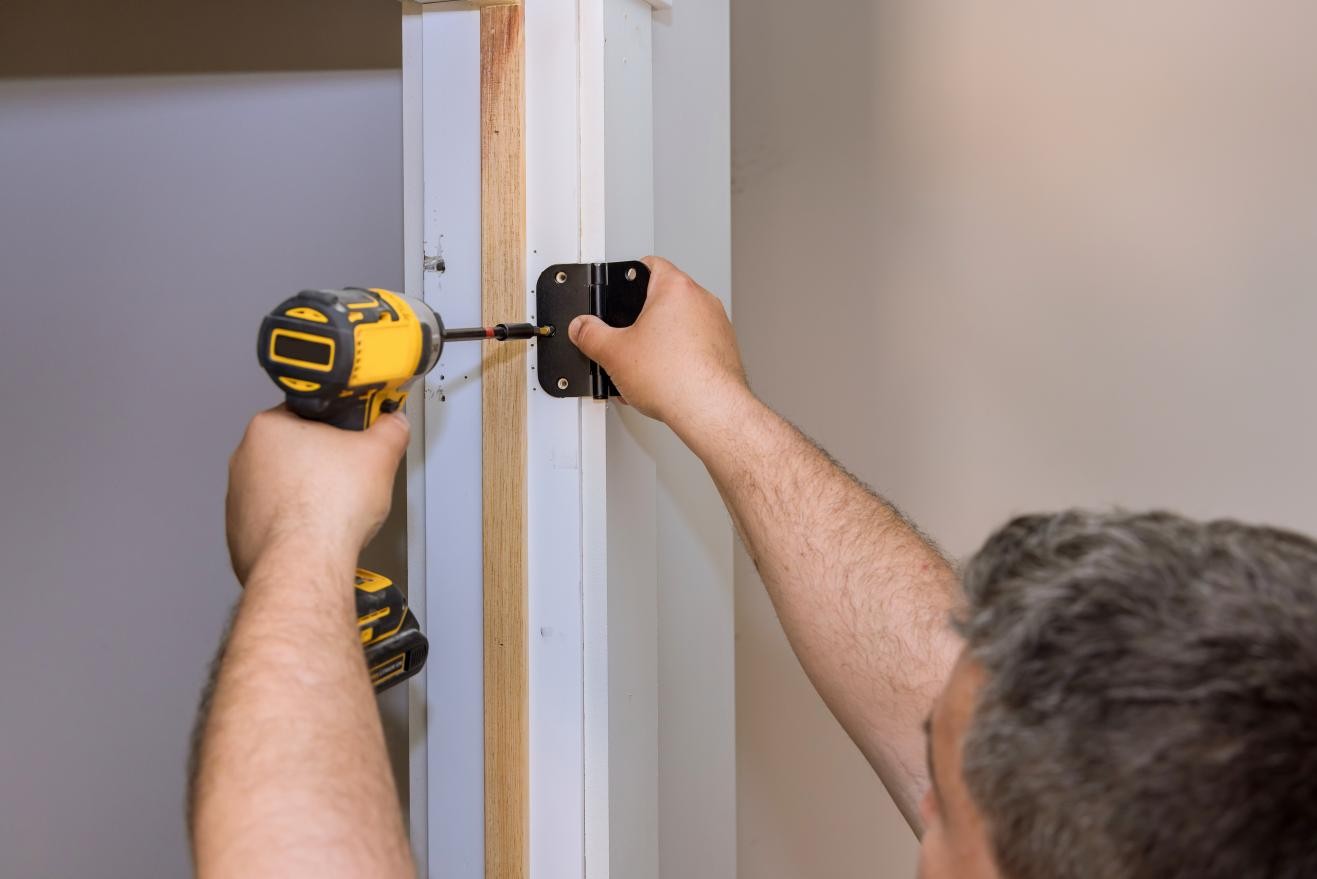

Step 3: Mount the Hinges

· Secure the hinge leaves to both the door and the frame using the provided screws.

· Most kits come with both wood and machine screws—select according to the material (wooden or metal frame).

· Ensure that the barrel (spring portion) of the hinge is centered and aligned vertically.

Step 4: Adjust the Spring Tension

· Insert the tension pin or use a hex wrench to rotate the spring barrel (usually clockwise).

· Once desired tension is reached, insert the locking pin into one of the preset holes to secure the spring in place.

· Test the door’s closing speed and repeat adjustment if necessary.

Step 5: Final Check

· Open and release the door several times to verify smooth, automatic closing.

· Confirm that the door closes fully and latches securely without slamming.

· Re-tighten all screws after testing.

Maintenance for stainless spring hinges is minimal but important for longevity. Keep the spring barrel and pivot clean. Apply a thin lubricant (like light machine oil) to the pivot pins and spring mechanism.

If a hinge shows significant wear or damage, replace it promptly.

Applications of Stainless Steel Spring Hinges

Stainless steel spring hinges are favored in industrial, commercial, and institutional settings.

They are found on warehouse and factory doors, where self-closing helps maintain climate zones and security.

In high-traffic security areas (data centers, laboratories, etc.) these hinges ensure doors don’t stay open inadvertently.

They are also used on food processing, pharmaceutical, and chemical plant doors where sanitary and corrosion-resistant hardware is mandatory.

Outdoor gates and access doors commonly use stainless spring hinges for longevity in weather.

Other Related Questions:

· Spring Hinges vs. Door Closers:  A spring hinge itself acts as a door closer, eliminating the need for a separate overhead closer.

· Number of Hinges:  Use at least two spring hinges on standard doors; code often requires three for doors above 7’ or heavy fire doors.

· Handing:  No need to specify left/right – spring hinges are reversible.

· Screws Included:  TDC’s Stainless Steel Hinge kits include both wood and machine screws for mounting on any frame.

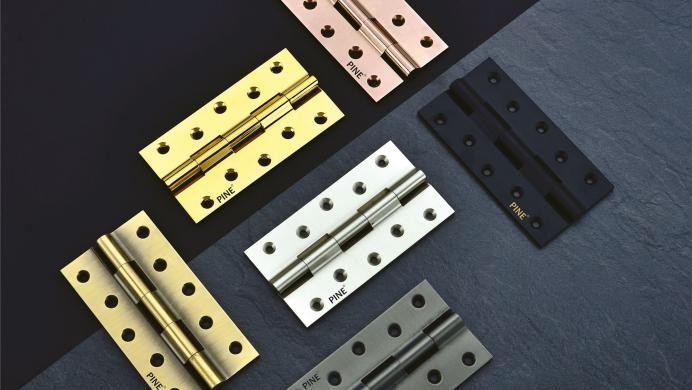

· Finish Options:  While stainless steel is often plain (US32D satin finish), many suppliers also offer plated or coated versions (e.g. black, oil-rubbed) for aesthetic matching.

>TDC Hardware offers spring hinges in various finishes to suit interior decor.

In my experience, stainless steel spring hinges provide a durable, maintenance-friendly solution for automatic door closing in tough applications. By matching hinge size and tension to the door, contractors can rely on these hinges to deliver self-closing action day after day with minimal upkeep.
