Key Differences Between Commercial And Residential Door Hinges

Selecting the right door hinge is critical for any construction project, as hinges must match the door’s use and regulatory requirements. Commercial door hinges are built for heavy use in high-traffic environments, while residential hinges are sized and rated for lighter-duty home use. Residential hinges is often smaller, lighter, and may prioritize aesthetics or ease of installation. Installing an incorrectly-rated hinge can cause premature wear or non-compliance with codes.

Size, Material, and Finishes

Commercial hinges are generally larger and made from heavier materials. They often measure 4″×4″ or 4.5″×4.5″ with thick leaves (for example, around 2.2 mm or ~0.086″ thick).

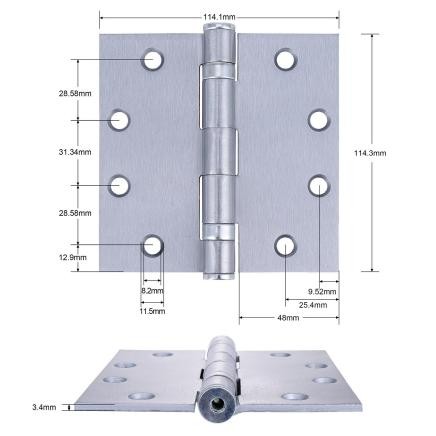

CH4545BB-US26D

Residential hinges are usually 3.5″×3.5″ or 4″×4″ with thinner leaves (commonly 16 or 18 gauge, roughly 0.059″–0.098″).

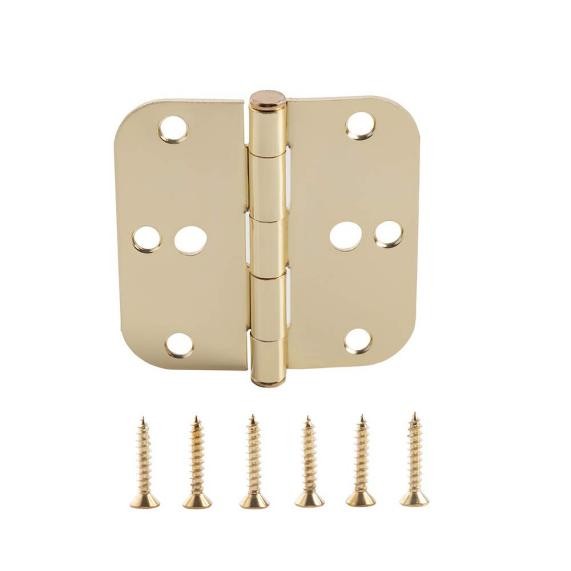

RH3535 brass finish

Many residential hinges are plated steel or brass, whereas commercial hinges are frequently stainless steel or heavy-duty plated steel designed for durability. Standard residential finishes (bright brass, nickel, etc.) focus on appearance, while commercial hinges often use rugged finishes (satin chrome, black, stainless) that resist wear in institutional settings.

Learn more about TDC’s hinge custom process: Our engineers partner with you to finalize specifications, materials, and finishes tailored to your needs.

Knuckles and Bearing Type

The arrangement of the hinge knuckles (the cylindrical barrels) also differs.

Commercial-grade hinges commonly use five-knuckle construction to house ball bearings between the knuckles. These ball-bearing hinges have small steel balls that reduce friction and wear, allowing heavy doors to swing smoothly even under constant use.

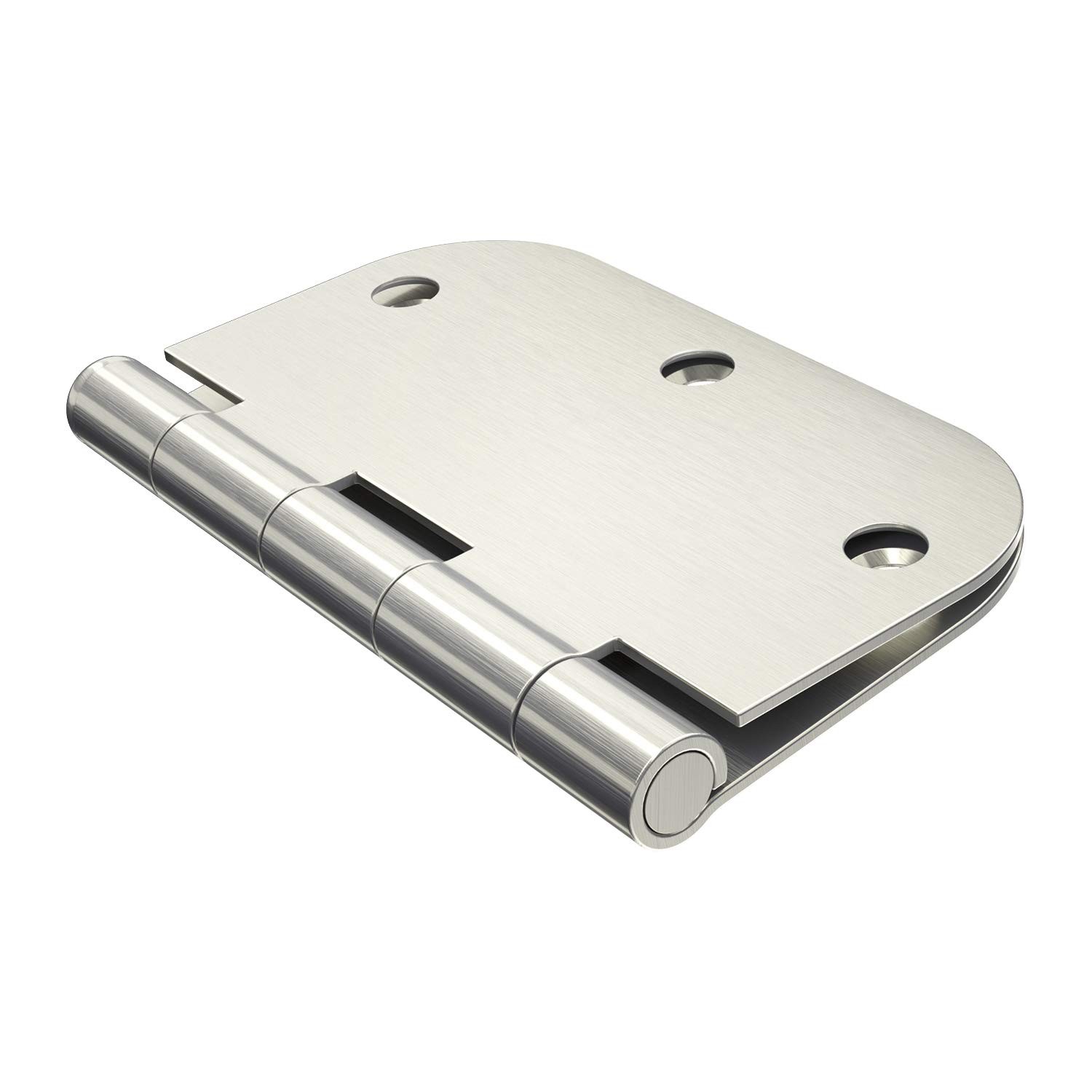

Common residential hinges use plain bearings (knuckles bearing directly on each other) and often have fewer knuckles.

 Leaf Thickness and Gauge

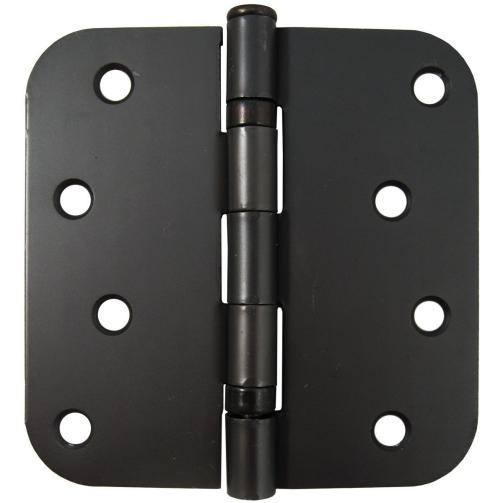

The flat plates of the hinge (the leaves) must be thicker on commercial hinges to bear heavier loads. Modern commercial hinges might be made of 12-gauge steel (about 0.105″) or thicker, whereas standard residential interior hinges often use 16- or 18-gauge (about 0.05–0.08″). Even a high-end residential ball-bearing hinge might only be ~2.2 mm thick, while commercial hinges can exceed 3.5 mm. For example, the 4″ TDC Hinges matte-black model has a 2.2 mm (0.086″) leaf, illustrating the heavier construction common in high-duty applications.

Pin Type and Security

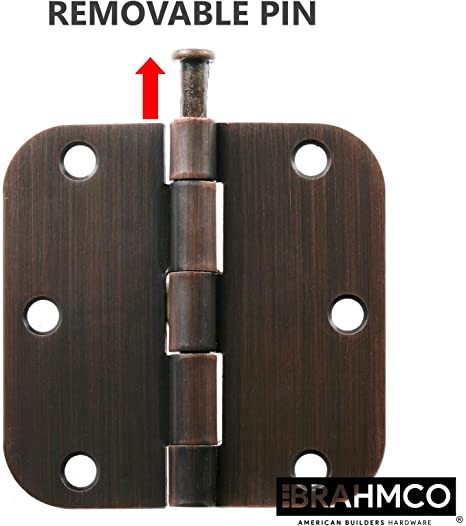

A key distinction is pin design. Commercial hinges often feature non-removable pins or tamper-resistant fasteners to deter intruders. This security feature prevents someone from removing the hinge pin and taking the door off its frame, which is critical in public buildings. Many residential hinges use removable (loose) pins for convenience. For example, the TDC Hinges 4″ US10A hinge includes a removable, riveted pin, which simplifies installation and maintenance. In practice, one typically specifies non-removable-pin hinges for high-security commercial applications, whereas removable pins are acceptable for residential use.

Fire-Rating and Code Compliance

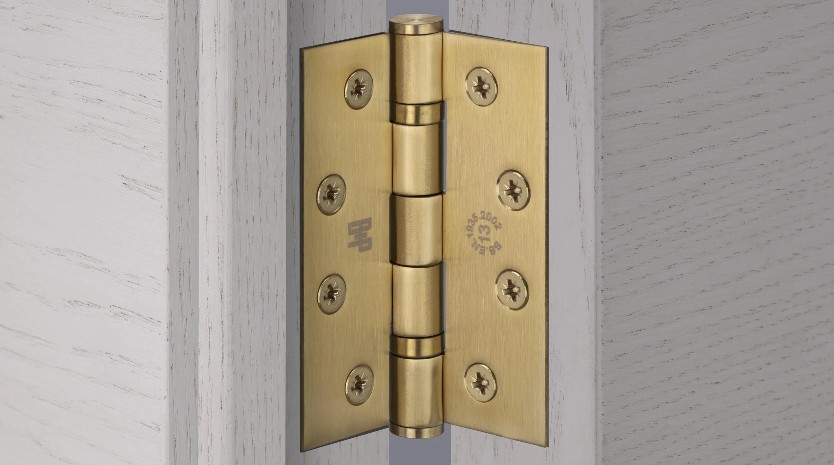

Commercial doors frequently must meet fire-rating standards, which means the hinges must also be fire-rated. Fire-rated hinges have been tested to maintain a door’s integrity in a fire; they are usually constructed of heavy-gauge steel (often stainless) with hardened pins. This means using UL-listed hinges on labeled fire doors and installing the correct number (typically three or four) of fire-rated hinges. Residential interior doors almost never require fire-rated hinges, but in mixed-use or multi-family projects code may require rated hinges even for certain entry doors.

Accessibility (ADA) and Operation

ADA (Americans with Disabilities Act) guidelines influence hinge choice indirectly. ADA standards require doors to open with minimal force (≤5 lb) and have controlled closing speed. In practice, designers achieve this by using ball-bearing hinges (for low friction) and hydraulic closers, ensuring the door meets ADA requirements. Thus, while ADA does not mandate a special “ADA hinge,” many ADA-compliant commercial doors use ball-bearing hinges and power closers to meet the ≤5 lb opening-force requirement. Also, hinges should be installed to avoid creating pinch points between the door and frame, which is a safety requirement.

Installation Standards

Installation practices differ between commercial and residential doors. Commercial metal doors usually come with three hinges on an 80″ door (top, middle, bottom) to carry weight; taller or heavier doors may use four or more. Residential 80″ doors sometimes use only two hinges, though three is recommended for heavier doors. Screw selection also differs:

Commercial installations typically use long screws (#14 or #12, ~3″) to reach into metal frames.

Residential hinges on wood frames use shorter screws (#8 or #10, ~1″).

Learn more about TDC’s Installation guide: We aim to make installation a breeze so your projects finish on time. For hassle-free setup and expert assistance, reach out and let's discuss how TDC can support your installers every step of the way

Comparison Table

Frequently Asked Questions

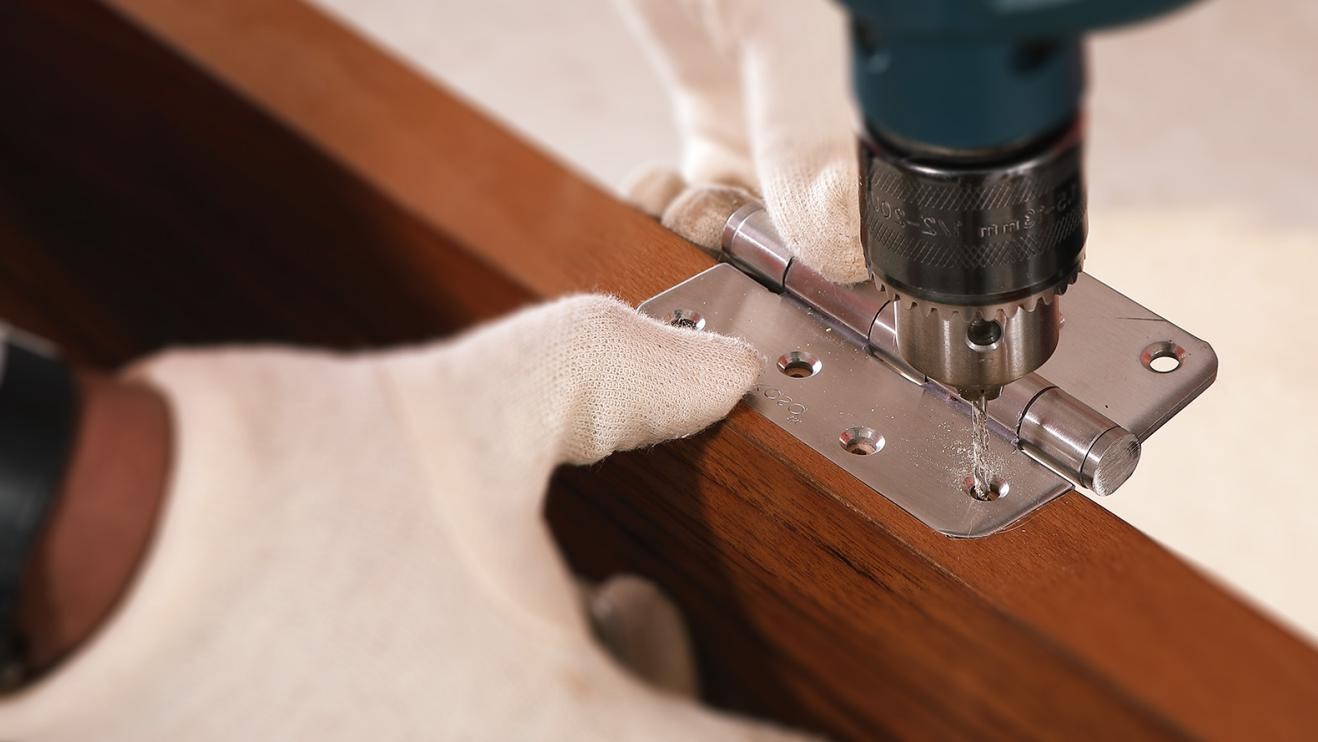

Q: Can I use a residential hinge on a commercial door?

A: Generally no. Residential hinges (3.5″ size, lighter gauge, plain-bearing) are not rated for rigorous commercial use. Commercial doors – especially in public buildings – require heavier-duty hinges (often stainless steel, thicker leaves, ball-bearing) to handle constant use and meet building codes. Using a lightweight residential hinge on a heavy or high-traffic door can cause premature wear or safety failures.

Q: Are commercial hinges required to be fire-rated?
A: It depends on the door. Any labeled fire door must use UL-listed fire-rated hinges. Fire-rated hinges have been tested for fire exposure and are built of hardened, heavy steel to preserve the door’s rating. Residential interior doors almost never need fire-rated hinges, but in mixed-use or multi-family buildings codes may require them. Always match the hinge rating to the door’s rating (e.g. a 90-minute door needs 90-minute hinges).

Q: How many hinges should I use on a standard commercial door?
A: Most 80″-tall commercial doors use three hinges. Taller or heavier doors may use four. As a guideline, doors up to 60″ tall use two hinges, 60–80″ use three, 80–97″ use four, and so on. Always follow local code; for example, fire-rated doors typically require at least three hinges. Residential doors often use two hinges at 80″, but three is recommended for any heavier or exterior door to ensure stability.

Q: Can commercial hinges be decorative?
A: Yes – many manufacturers make heavy-duty hinges in decorative finishes and various corner styles. TDC hinges offers 4″ commercial hinges in matte black, satin nickel, brass, and other finishes. The key is that the hinge still meets the required strength rating. Decorative commercial hinges still feature the same robust construction (thicker leaves, ball bearings) as plain commercial models, so they can handle the same use.

Choosing hinges involves balancing functionality, durability, and code compliance. Always verify hinge ratings and certifications (ANSI/BHMA grade levels, UL listings, etc.) and consult manufacturer specifications (TDChinges’ catalogs) when specifying hardware.
