Never Struggle With Doors Again Using Lift Off Hinges
Lift Off Hinges let you remove and reinstall doors in seconds, even in challenging environments. Stainless steel construction ensures resistance to rust, high strength, and smooth operation, making your door upgrades and cleaning routines remarkably simple.
Are lift-off hinges any good?
Unique Design

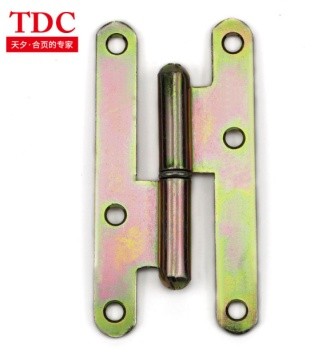

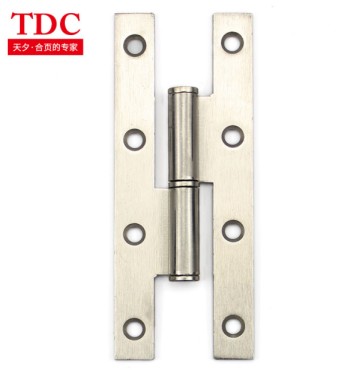

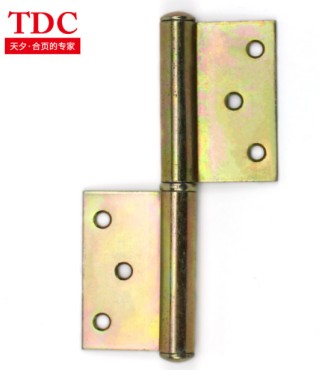

We encounter many types of door hinges, but lift off door hinges stand out due to their innovative construction. Unlike standard hinges, which require you to remove pins or unscrew plates to detach a door, take-apart hinges use a two-part assembly. One leaf features a permanent pin, while the other has a hollow knuckle. When you install the door, these leaves interlock. You can then remove the door simply by lifting it vertically—no tools or fasteners required.
This design offers a practical solution for frequent door removal. For example, in environments where you need quick access or regular cleaning, you can lift the door off its hinges in seconds. The engineering behind these hinges involves precise metal forming and fastening, ensuring both strength and ease of use. Modern manufacturing uses advanced simulations to analyze forces and stresses, optimizing the hinge for durability and smooth operation.
Feature | Standard Hinges | Lift-Off Hinges |
Design | Two plates (leaves) joined by a pin | Two interlocking leaves, one with a pin that lifts off |
Removal | Requires tools | Tool-free, lifts off vertically |
Installation | Screwed or bolted into place | Screwed or bolted into place, then door easily lifts on |
Functionality | Allows doors/panels to swing open and close | Allows doors/panels to swing open with easy option to remove and reattach doors or panels |
Frequency of removal | Not designed for frequent removal | Designed for frequent removal |
Maintenance | More challenging due to the need for tools | Easier maintenance with quick removal and reattachment |
Space requirements | Needs horizontal space to open properly | Needs less space to open before being lifted off – ideal for enclosures in tight spaces |
Key Benefits for Using Lift-off Hinges
If you frequently update your home’s interior or need to access utility panels, lift-off hinges provide unmatched convenience.
· Effortless Door Removal: You can remove doors quickly for painting, cleaning, or repairs without needing special tools.
· Time-Saving Maintenance: You save time during home upgrades or seasonal cleaning because you can lift the door off and set it aside.
· Ideal for Tight Spaces: You benefit from easy access in small rooms or enclosures where swinging a door fully open is difficult.
· Enhanced Safety: You reduce the risk of injury or damage since you do not have to wrestle with heavy doors or awkward hardware.
· Versatile Applications: You can use lift hinges in residential, commercial, and industrial settings, making them a flexible choice for many projects.
Why Stainless Steel Is the Best Choice
Material tests show that stainless steel hinges withstand over 200 hours in salt spray environments, confirming their suitability for outdoor and marine applications. The chromium content forms a protective layer, ensuring your hinges remain functional and attractive for decades. In fact, stainless steel hinges can last up to 100 years under normal conditions, far outlasting alternatives made from aluminum or zinc alloys.
· Stainless steel lift off hinges resists rust and corrosion, even in humid or coastal areas.
· Grades 304 and 316 provide superior protection against salt, moisture, and chemicals.
· Stainless steel supports heavy doors and maintains smooth operation over years of use.
· Compared to brass, steel, or aluminum, stainless steel offers greater strength and longevity.
Property/Feature | Stainless Steel lift-off Hinges | Other Materials (Aluminum, Zinc Alloy) |
Corrosion Resistance | Exceptional; lasts up to 100 years under typical atmospheric conditions | Lower resistance; more prone to corrosion and degradation |
Marine Grade (316) | Enhanced corrosion resistance in coastal/harsh environments | Not typically available or less effective |
Strength and Load Capacity | Supports heavy loads exceeding 200 pounds; superior strength | Lower strength; less suitable for heavy-duty applications |
Application Sectors | Construction, automotive, marine – reliable in harsh environments | Limited use in harsh or heavy-duty environments |
Longevity | Up to 100 years without substantial degradation | Significantly shorter lifespan |
TDC’s Material Choice：
At TDC, it’s not just about producing products that live up to your expectations; it’s also about developing materials that stand up to the rigors of the trail, while keeping our impact on the environment as small as possible.
We use Q195/Q235 Cold Rolled Steel, and Stainless Steel 201/304/316. Different grades of cold-rolled steel have different yield strength and tensile strength.
Q195 cold rolled steel is used in most products, and we choose Q235 for better material hardness and testing requirements. If with higher requirement of corrosion resistance (such as moisture, food contact) or shiny surface, stainless steel material will be our first choice.
Selecting Lift Off Hinges
How to Select the Right Size and Type
When you select detachable hinges, pay attention to the following factors:
· Application type (interior, exterior, utility panel, etc.)
· Door weight and dimensions
· Frequency of use and expected traffic
· Environmental conditions (humidity, temperature, exposure to chemicals)
· Aesthetic preferences and finish
· Budget
For removable doors, lift-off hinges provide the best solution. Consider the weight, thickness, and width of your door before making a decision. Heavier or wider doors require larger and stronger hinges.
Industry standards recommend sizing hinges based on door thickness and width. Use these guidelines to determine the correct hinge height:
Door Thickness | Door Width Range | Recommended Hinge Height |
1-3/8" | Up to 32" | 3-1/2" |
1-3/8" | 32" to 36" | 4" |
1-3/4" | Up to 36" | 4-1/2" |
1-3/4" | 36" to 48" | 5" |
1-3/4" | Over 48" | 6" |
2" to 2-1/2" | Up to 42" | 5" (commercial duty) |
2" to 2-1/2" | Over 43" | 6" (commercial duty) |

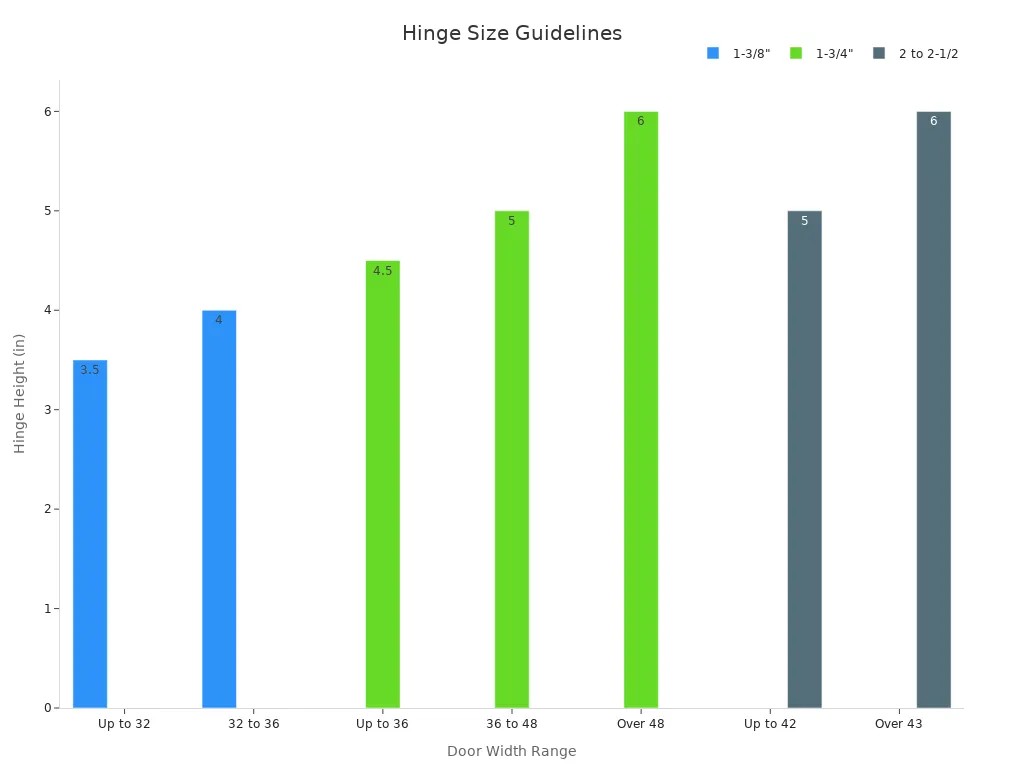

You can also refer to this chart for a visual guide:
Tip: Always match the hinge corner radius to your existing door cutouts for a seamless fit.

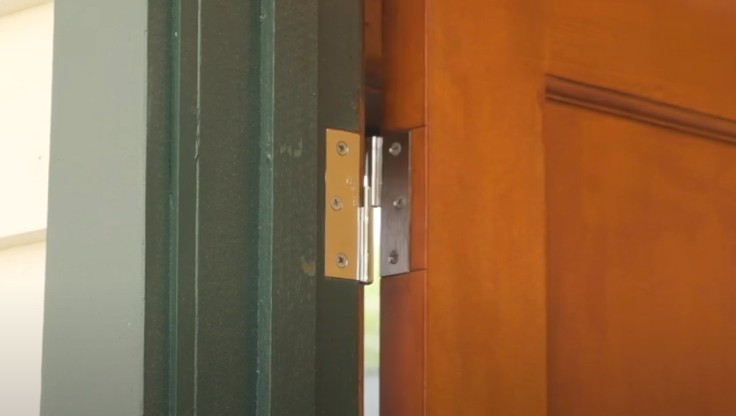

Step-by-Step Lift-off Hinge Installation
Proper installation guarantees the best performance from your removable hinges. You can follow these steps for a smooth process:
1. Mark Hinge Placement
Place the top hinge 5 inches from the top edge of the door. Position the bottom hinge 10 inches from the bottom edge. Center any additional hinges between these points.
2. Align and Attach Hinges
Hold the hinge leaf with the pin on the door frame and the mating leaf on the door. Mark screw holes with a pencil. Drill pilot holes to prevent wood splitting.
3. Secure Hinges
Fasten the hinge leaves to the door and frame using the provided screws. Ensure the leaves align perfectly so the door lifts on and off smoothly.
4. Test the Fit
Lift the door onto the hinges. Check for smooth movement and proper alignment. Adjust as needed for a perfect fit.
5. Final Inspection
Open and close the door several times. Make sure the removable hinges operate quietly and without resistance.
FAQs
How do you know if lift off hinges fit your door?
We recommend you to use lift-off hinges when you need the ability to easily remove the door without tools or unscrewing the hinges.
Measure your door’s thickness and width. Check the hinge specifications. If your door matches the recommended size, you can use lift off hinges.
Can you install removable hinges on exterior doors?
Yes. Stainless steel take apart hinges resist rust and weather. You can use them on both interior and exterior doors for long-lasting performance.
What maintenance do lift off hinges require?
You should inspect hinges every six months. Clean them with a soft cloth. Apply lubricant to moving parts for smooth, quiet operation.
If you need further consultation and discussion, please feel free to contact us.
