The Essential Guide to Furniture Hinge Selection

The furniture hinge market projects an 8.4% CAGR from 2025 to 2032, highlighting the demand for quality hardware. Choosing from the different types of furniture hinges involves a clear process. A professional result depends on three key decisions.

• First, identify the cabinet construction: face frame or frameless.

• Next, determine the door's overlay style.

• Finally, select the desired functionality, such as soft-close.






Exploring the Different Types of Furniture Hinges

Selecting the right hardware begins with understanding the different types of furniture hinges available. Each style offers unique aesthetics, functionalities, and installation methods tailored to specific applications. A project's success often depends on matching the hinge to the cabinet's design and intended use.

European (Concealed) Hinges

European hinges are the standard for modern, clean-lined cabinetry. They mount entirely inside the cabinet, making them completely invisible when the door is closed. This creates a seamless, uninterrupted exterior surface. Their design allows for precise three-way adjustment (height, depth, and side-to-side) after installation.

The mechanics of a European hinge involve several key parts working together:

• Hinge Cup: This circular part sits in a hole drilled into the back of the door. The standard cup hole diameter is 35 mm (1-3/8 inches).

• Hinge Arm: This component connects the cup to the mounting plate and provides the structural leverage for the door to swing. The offset, or "crank," in the arm helps determine the door's overlay.

• Mounting Plate: This piece fastens to the cabinet wall or face frame, and the hinge arm attaches to it.

Pro Tip: When drilling for the hinge cup, use a stop collar on your drill bit. This prevents drilling through the face of the door, ensuring a clean and professional installation.

Modern European hinges often include advanced features. For example, the TDC C806 3D Adjustable Soft-Close Hinge offers superior adjustability and a silent, gentle closing motion. Other excellent options include the TDC C868 Two-Way Slide-On Hinge for straightforward installation and the TDC C866 Clip-On Hydraulic Hinge, which combines a strong hydraulic mechanism with the convenience of a quick-release clip-on system.

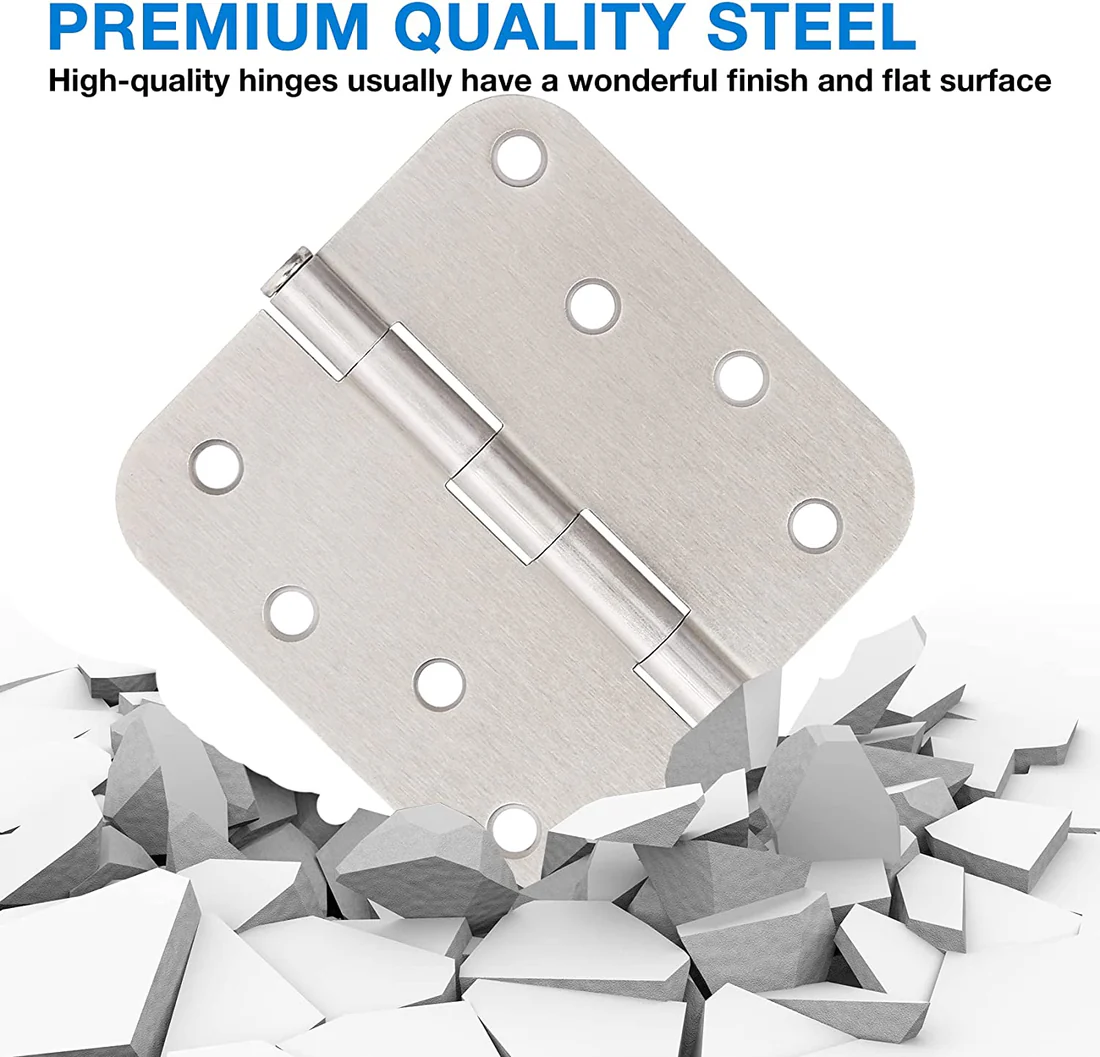

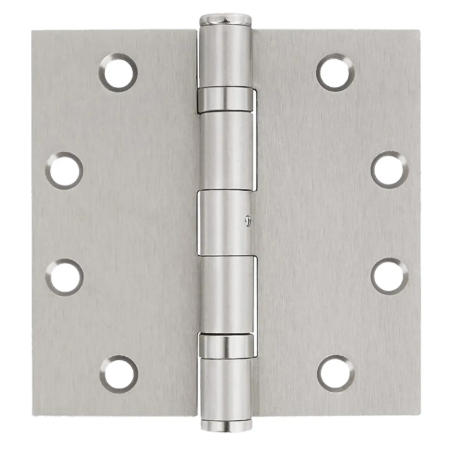

Butt Hinges

Butt hinges represent a more traditional approach to hardware. These hinges consist of two rectangular leaves joined by a central pin or barrel. One leaf mortises into the door, while the other mortises into the cabinet frame, leaving only the barrel visible when the door is closed.

The Industrial Revolution spurred the development of specialized hardware, and butt hinges became the go-to choice for interior doors and classic furniture. Their simple, robust design has stood the test of time. Manufacturers produce them from various materials, each offering distinct advantages:

• Stainless Steel: Provides excellent strength and corrosion resistance, ideal for humid environments like kitchens or bathrooms.

• Brass: Offers durability with a classic, decorative aesthetic that develops a patina over time.

• Steel: A common and cost-effective choice for general-purpose interior applications.

• Bronze: Known for its exceptional durability and premium, traditional appearance.

Surface Mount (Frameless) Hinges

Surface mount hinges, sometimes called frameless or overlay hinges, attach directly to the surface of the cabinet frame and door. Unlike butt hinges, they do not require a mortise to be cut. This makes installation simpler and faster.

Because they are fully visible, these hinges become a decorative element of the furniture. They are often used on utility cabinets, chests, and in rustic or industrial-style designs where the hardware is part of the aesthetic. Their straightforward design makes them a practical choice for DIY projects and lightweight doors. Exploring the different types of furniture hinges reveals that this style prioritizes ease of installation over concealment.

Piano (Continuous) Hinges

A piano hinge is a long, continuous hinge designed to distribute weight evenly along the entire length of a door or lid. Its name comes from its original use on piano keyboard covers. This design provides exceptional support and rigidity, preventing long or heavy doors from sagging over time.

These hinges are ideal for toy boxes, fold-down desks, storage benches, and tool chests. Their load-bearing capacity is impressive, making them a reliable choice for heavy-duty applications.

Specialty Hinges

Beyond the common styles, a world of specialty hardware exists to solve unique design challenges. These different types of furniture hinges offer specific functionalities for custom applications.

A prominent example is the Soss invisible hinge. Like European hinges, they are completely hidden from view when closed. However, they are mortised into the edge of the door and frame, making them incredibly strong and secure. Their robust construction makes them suitable for demanding environments.

• Enhanced Security: With no exposed components, these hinges deter tampering.

• Corrosion Resistance: Stainless steel models resist rust, making them perfect for outdoor furniture, gates, and even marine applications near the ocean.

• Durability: They are engineered to withstand frequent use and harsh elements, including UV exposure.

These features make specialty hinges like the Soss hinge an excellent choice for high-end architectural installations, hidden doors, and custom outdoor structures where both aesthetics and performance are critical. The wide array of different types of furniture hinges ensures a solution for nearly any project.

Key Selection Factors for Your Project

Selecting the perfect hinge goes beyond aesthetics. A successful installation depends on a careful analysis of your furniture's specific characteristics. Understanding these key factors ensures your doors will function smoothly and reliably for years to come.

Cabinet Construction

The first critical factor is the cabinet's construction style. Furniture cabinets are typically built in one of two ways: face frame or frameless. This structural difference dictates the type of hinge and mounting plate required.

• Face Frame Cabinets: These feature a solid wood frame (usually 1.5 to 2 inches wide) attached to the front of the cabinet box. This frame creates a sturdy structure and a traditional look. The construction of a face-frame cabinet directly influences hinge mounting plate choice. Hinges must mount onto this frame, which is why they are often called semi-concealed hinges. Even modern European hinges need specialized mounting plates or unique designs to adapt to this construction style.

• Frameless (Euro-style) Cabinets: These cabinets lack a front frame. The cabinet doors mount directly to the side walls of the cabinet box. This design offers fuller access to the cabinet interior and creates a sleek, modern appearance. It requires hinges that attach to the interior cabinet wall.




Door Overlay Style

Door overlay describes how the cabinet door sits in relation to the cabinet opening. This measurement is crucial for choosing a hinge that will position the door correctly.

There are three primary overlay styles:

1. Full Overlay: The door completely covers the cabinet face or front edge of the cabinet box. This style is common in modern, frameless cabinetry for a seamless look.

2. Partial Overlay (or Half Overlay): The door covers only part of the cabinet face frame, leaving a portion of the frame exposed. This is a standard choice for face frame cabinets.

3. Inset: The door sits entirely inside the cabinet frame, flush with the front edges. This creates a classic, high-end look but requires precise installation and specific inset hinges.

How to Measure Overlay AccuratelyWhile you can calculate overlay, direct measurement provides greater accuracy. Follow these simple steps:

1. Close the cabinet door completely.

2. Place a small piece of tape on the cabinet frame, right against the edge of the door.

3. Open the door.

4. Measure the distance from the edge of the tape to the inside edge of the cabinet opening. This distance is your overlay.

Door Weight and Material

The door's weight and material are fundamental to choosing a durable hinge. A heavy door made of solid oak requires a much stronger hinge than a lightweight MDF door. Ignoring this factor can lead to sagging doors and hinge failure.

Door material also affects how well screws hold over time. Solid wood like oak offers excellent strength and holds screws securely. In contrast, MDF is a dense and smooth material but does not hold screw threads as effectively. Repeated use can cause screws to loosen in MDF. To counter this, installers can use hardwood dowels or special plastic plugs to improve screw retention.

The following table offers general guidance for hinge selection based on door material:

To determine the number of hinges needed, consider both the door's height and weight. Always include the weight of any handles or pulls in your calculation.

Hinge Count by Door Height:

• Up to 60 inches: 2 hinges

• 60 to 90 inches: 3 hinges

• 90 to 120 inches: 4 hinges

Hinge Count by Door Weight:

• 4–6 kg (9–13 lbs): 2 hinges

• 6–12 kg (13–26 lbs): 3 hinges

For doors wider than 600 mm (approx. 24 inches), adding an extra hinge provides better stability.

Desired Functionality and Features

Finally, consider the features that will enhance the user experience. Modern hardware offers a range of functionalities that add convenience and a touch of luxury to any piece of furniture. Exploring the different types of furniture hinges reveals options for nearly any need.

• Soft-Close: This popular feature uses a hydraulic or pneumatic damper to prevent doors from slamming. The door closes gently and silently, which is ideal for kitchens and bedrooms.

• Self-Close: A spring mechanism in the hinge pulls the door closed from a certain point, ensuring it latches securely without needing a firm push.

• Adjustability: Many European hinges offer three-way adjustability (up/down, left/right, and in/out). This allows for perfect door alignment after installation, correcting any minor imperfections.

• Opening Angle: Hinges come with various opening angles, typically from 95° to 170°. A wider angle provides better access to the cabinet's contents, which is useful for pantry or corner cabinets.

By carefully evaluating these four factors—construction, overlay, material, and features—you can confidently select the right hinge for a professional and long-lasting result.

Featured Hinges for Modern Cabinetry

Modern cabinetry demands hardware that combines sleek aesthetics with advanced functionality. The right hinge not only supports the door but also enhances the user experience. TDC Hardware offers several innovative solutions designed for contemporary furniture. These featured hinges provide reliability, smooth operation, and easy installation for any project.

TDC C806 3D Adjustable Soft-Close Hinge

The TDC C806 3D Adjustable Soft-Close Hinge delivers precision and quiet performance. Its integrated soft-close mechanism ensures cabinet doors shut gently and silently, preventing slams. The key feature is its three-dimensional adjustability. Installers can make fine-tuned corrections after mounting the door.

• Vertical (Up/Down): Aligns door height.

• Horizontal (Left/Right): Adjusts gaps between doors.

• Depth (In/Out): Ensures the door is flush with the cabinet.

This level of control guarantees perfect alignment for a flawless, professional finish.

TDC C868 Two-Way Slide-On Hinge

For projects prioritizing efficiency and reliability, the TDC C868 Two-Way Slide-On Hinge is an excellent choice. This hinge simplifies the installation process. The hinge arm slides directly onto the mounting plate and is secured with a screw. This design provides a strong, stable connection suitable for a wide range of standard cabinet applications. Its straightforward mechanics make it a dependable workhorse for both large-scale productions and individual custom builds.

TDC C866 Clip-On Hydraulic Hinge

The TDC C866 Clip-On Hydraulic Hinge combines convenience with superior motion control. It features a quick-release clip-on system. This allows for effortless door attachment and removal without tools, simplifying installation and maintenance.

Pro Feature: The powerful hydraulic damper provides an exceptionally smooth and consistent soft-closing action. This hinge is ideal for high-end cabinetry where premium feel and easy serviceability are essential.

Understanding Advanced Hinge Features

Modern hardware offers more than just a pivot point. Advanced features enhance functionality, safety, and the overall user experience. Understanding these options helps you select a hinge that perfectly matches your project's needs.

Soft-Close vs. Self-Close

People often confuse soft-close and self-close hinges, but they serve different purposes. A self-close hinge uses a spring to pull the door shut, ensuring it latches securely. A soft-close hinge includes a hydraulic piston that dampens the closing action, preventing slams. This feature protects the cabinet frame from wear and reduces noise.

Key Distinction: While both ensure a door closes, only a soft-close hinge provides a silent, gentle motion. The self-close hinge offers convenience, while the soft-close hinge adds a touch of quiet luxury.

Opening Angle Explained

A hinge's opening angle determines how far a cabinet door can swing open. This directly impacts your access to the cabinet's interior.

• Standard Angle (105°-120°): This is the most common range. It provides wide access for most standard cabinets.

• Wide Angle (120°+): Ideal for pantries or corner cabinets, this angle allows the door to swing completely out of the way for maximum accessibility.

• Restricted Angle (90°-100°): These hinges prevent a door from swinging too far and hitting an adjacent wall or appliance, offering a built-in safety stop.




Quick-Release and Adjustability

High-quality hardware often includes features that simplify installation and maintenance. A quick-release, or clip-on, mechanism allows you to attach or remove a cabinet door from its mounting plate without any tools. This feature is invaluable during assembly and cleaning.

Many different types of furniture hinges also offer 3D adjustability. This allows for fine-tuning after the door is hung. Installers can make precise corrections to the door's alignment in three dimensions:

1. Height (Up/Down)

2. Lateral (Left/Right)

3. Depth (In/Out)

This level of control guarantees perfect, even gaps and a professional finish.

Hinge Comparison at a Glance

Choosing the right hardware is simpler when you can compare options side-by-side. This table breaks down the primary hinge styles to help you match the hardware to your project's specific needs.

Hinge Type

Common Application

Key Features

Best For

Selecting the right hinge boils down to three key decisions: identifying cabinet construction, determining door overlay, and choosing desired features. A well-chosen hinge ensures your furniture functions perfectly and contributes to a clean, professional finish.

Pro Tip: Avoid common errors by double-checking your overlay measurement and confirming the hinge type matches your cabinet style before purchasing. This guarantees a smooth installation.

FAQ

How many hinges does a cabinet door need?

Door height and weight determine the hinge count. A standard door up to 60 inches tall typically requires two hinges. Heavier or taller doors need three or more for support.

What is the difference between soft-close and self-close?

A self-close hinge uses a spring to pull the door shut. A soft-close hinge uses a damper for a quiet, gentle closing motion that prevents slamming.

Can European hinges be used on face frame cabinets?

Yes, this is possible. Installers must use a European hinge designed for face frame applications or a special mounting plate that attaches directly to the cabinet's front frame.
