Tips For Adjusting And Maintaining Double Action Spring Hinges

We rely on proper adjustment and maintenance to keep our double action spring hinge performing at its best. This hinge lets doors swing both ways, making movement easy in busy areas. With smooth, self-closing action and trusted certifications, TDC Hardware delivers high-quality hinges that offer safety, durability, and peace of mind.

Double Action Spring Hinge Basics

How Double Action Spring Hinges Work

You can find double swing door hinges in many busy spaces because of their unique design. These hinges use several main components to create smooth, reliable movement:

lSprings provide the tension needed for automatic closing.

lPins hold the hinge together and allow the door to move freely.

lLeaves attach to the door and frame, giving strong support.

lThe center pivot point lets the door swing both ways.

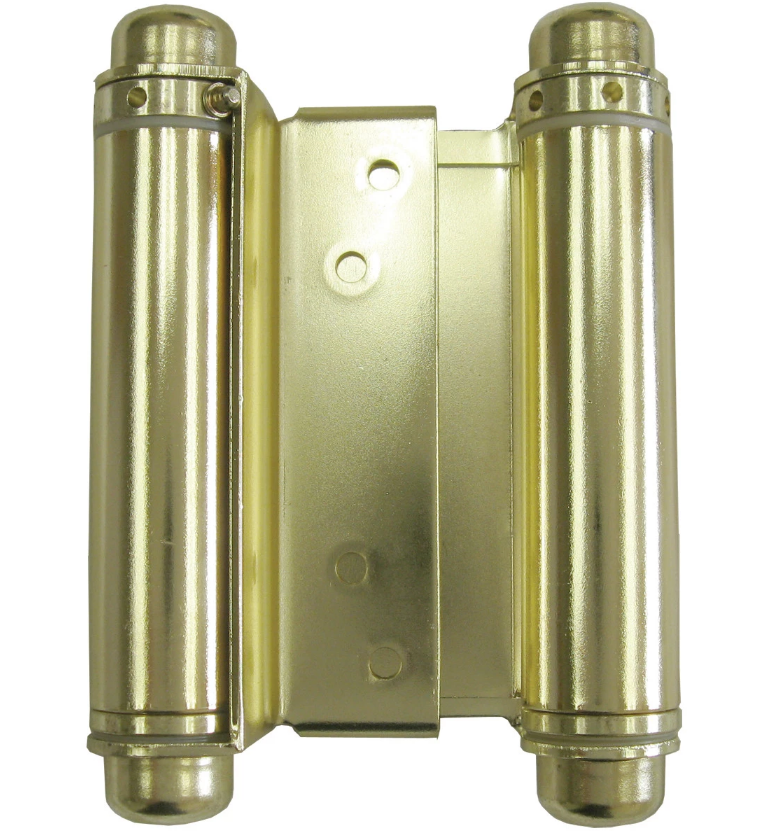

Double swing door hinges have two sets of knuckles on each leaf. This design allows the door to pivot in both directions. When you open the door, the spring stores energy. As you let go, the spring releases this energy and returns the door to the center position. This self-centering action keeps the door closed and reduces wear on the frame. You get a safer and more convenient entryway, especially in high-traffic areas.

Tip: Double swing door hinges help prevent slamming and keep doors aligned, making them ideal for busy environments.

Common Uses for Double Swing Door Hinges

We can see double swing door hinges in many commercial and residential settings. These hinges let doors swing both inward and outward, then return to the center without a latch. Here are some common places where you might use double swing door hinges:Restaurants, cafes, and commercial kitchens for easy, hands-free access.

l Retail stores, offices, and hospitals where people move through doors often.

l Warehouses and loading docks for quick movement between areas.

l Residential spaces like kitchens, patios, or balconies for smooth transitions.

l Partition doors that separate building sections but need easy access.

Double swing door hinges work well in any space that needs doors to swing both ways and close automatically. You can rely on a double acting spring hinge or double action spring hinges for smooth, long-lasting performance.

Why Adjust Spring Hinges?

Signs Adjustment Is Needed

There’re  several signs that tell you it is time to adjust spring hinges. These signs help you keep your doors working safely and smoothly. Look for the following:

l The door slams shut or closes too quickly.

l The door moves too slowly or does not close all the way.

l The door does not return to the center position after opening.

l You hear squeaks or creaks when the door moves.

l The door sags or shows uneven gaps between the door and frame.

If you see any of these signs, you should check your hinges. Adjust spring hinges to control the closing speed and force. This adjustment helps prevent slamming, improves safety, and creates a quieter environment. In busy places like restaurants or offices, proper hinge tension keeps doors working well for everyone.

Effects of Poor Adjustment

When you ignore hinge problems, you may face common issues that affect door performance and safety. Improper adjustment can cause the door to sag or create uneven gaps. This makes the door hard to use and can even lower security. If the spring tension is too low, the door may not return to the center or may creak. If the tension is too high, the door may close with too much force, wearing out the hinge and making loud noises. Over time, these problems can damage the hinge mechanism and misalign the hardware. Keeping your hinges adjusted ensures smooth operation, self-centering, and a safer space for everyone.

Tools and Safety

Tools for Adjusting Spring Hinges

You need the right tools to adjust double action spring hinges safely and effectively. Most adjustments require only a few basic items:

l Adjustment rod or tension bar (usually included with the hinge)

l Tension pin for locking the spring in place

l Flathead screwdriver for removing hinge covers or plates

l Allen wrench or hex key for some hinge models

l Gloves to protect your hands from sharp edges

l Safety goggles to shield your eyes from debris

Tip: Keep a clean workspace. Remove clutter to prevent accidents and make it easier to find your tools.

TDC Hardware designs its hinges for easy adjustment and long-term reliability. You can trust their precision engineering to make the process smooth and straightforward.

Safety Tips for Double Action Hinges

Spring-loaded hinges store energy, so you must follow safety steps to avoid injury. Always wear gloves and safety goggles before you begin. If you work with heavy doors, ask a helper to assist you. This prevents strains and accidents.

Follow these steps for safe hinge adjustment and installation:

1. Release spring tension before mounting by inserting the adjustment rod and removing the tension pin.

2. Mount the door leaf so it sits centered between the hinge’s axial centers.

3. Align the door centerline with the frame centerline.

4. Attach the jamb flange to the door casing surface. Use shims if you need better alignment.

5. Mount hinges at the correct height locations.

6. Check that the hinge axial centers are vertically aligned.

Apply painter’s tape to protect nearby surfaces from scratches during installation. TDC Hardware’s commitment to quality means you get hinges that are safe, reliable, and easy to maintain.

How to Adjust Double Action Spring Hinges

Preparation Steps

Before you begin to adjust double swing door hinges, you need to prepare your workspace and gather the right tools. A safe and organized area helps you avoid mistakes and injuries. Follow this step-by-step adjustment guide to get started:

1. Clear the area around the door. Move furniture and remove any debris.

2. Lay down a drop cloth or towel. This catches screws and keeps dirt off the floor.

3. Gather your tools. You will need a power drill, screwdrivers, tape measure, level, shims, caulk, weatherstripping, safety goggles, and gloves.

4. Put on your safety goggles and gloves. Protect your eyes and hands from sharp edges and debris.

5. If the door is heavy, ask someone to help you. This prevents strain or injury.

6. Use painter’s tape to protect walls and floors from scratches.

7. Measure the door’s thickness, height, and width. This ensures you select the right double swing door hinges.

8. Choose high-quality spring hinges made from durable materials like stainless steel or brass.

9. Lay the door flat on a stable surface. Remove any old hardware and prepare the door for new hinges by creating mortises if needed.

10. Mark the hinge locations on the door and frame. Use a pencil and a hinge template or combination square for accuracy.

11. Test fit the hinges. Make sure they fit snugly without gaps.

12. Attach the hinges to the door, starting with the center screw.

13. Mark and attach the hinges to the frame, checking for proper alignment.

14. Reattach the door to the frame.

15. Open and close the door several times to check for smooth movement.

16. Adjust double swing door hinges as needed to ensure the door closes fully and evenly.

Tip: Always release the spring tension before installation. This prevents sudden movement and keeps you safe.

Adjusting Spring Tension

Proper spring tension is key for smooth operation of double swing door hinges. If the door closes too quickly or too slowly, you need to adjust the spring tension. Here is how you can adjust double swing door hinges safely:

1. Remove the tension pin using the adjustment rod. Insert the rod into the adjustment hole on the tension lug and turn it to release the pin.

2. For the top hinge, turn the rod left to increase tension or right to decrease it. For the bottom hinge, turn right to increase tension or left to decrease it.

3. After each adjustment, test the door’s movement. Open and close the door to see if it returns to the center smoothly.

4. Reinsert the tension pin to lock the spring in place.

5. Repeat the process if further adjustment is needed. Do not exceed five holes of tension on the top hinge and one hole on the bottom hinge.

6. Once you reach the desired tension, replace any cover plates and tighten all screws.

7. Start with minimal tension and increase in small steps. This prevents excessive force and reduces wear.

8. Lubricate the hinges after removing tension. Use paraffin, wax, or a silicone-based lubricant to keep the movement quiet and smooth.

9. If the spring mechanism feels weak or broken, replace the hinge.

Note: Always adjust double swing door hinges incrementally. Test the door after each change to avoid over-tightening.

Aligning Double Swing Door Hinges

Accurate alignment ensures your double swing door hinges work smoothly and prevent sagging or sticking. Follow these steps to align your hinges:

1. Identify problem areas. Mark spots where the door sticks or where gaps appear.

2. Remove the door if needed. Sand or plane the edges to improve the fit.

3. Insert thin shims behind the hinges to adjust the frame alignment and correct hinge positioning.

4. Tighten or replace hinge screws to secure the hinges firmly.

5. Use the adjustment screws on your double swing door hinges to eliminate gaps between hinge barrels and ensure even spacing between the door and frame.

6. Open and close the door several times. Check for smooth movement without resistance or creaking.

7. Make sure the gaps around the door edges are even. The latch should align with the strike plate.

8. If needed, reposition the strike plate so the latch catches securely.

9. After making adjustments, apply paint or stain to any sanded or planed edges to protect the wood.

Testing Door Movement

After you adjust double swing door hinges, you need to test the door’s movement. This step ensures your swing door adjustment is successful and the door operates as intended.

Remember: Incremental adjustments and regular testing help you avoid common mistakes. If you still have trouble, check for defective parts or seek professional support.

By following these steps, you can adjust double swing door hinges for smooth, reliable operation. This process helps you maintain your double action stainless hinge and extend its lifespan.

Maintaining Double Action Spring Hinges

Cleaning and Lubrication

You keep your double action spring hinges working smoothly by cleaning and lubricating them on a regular schedule. Dirt, dust, and moisture can build up over time, causing squeaks or even rust. To prevent these problems, follow these steps:

l Wipe the hinges with a soft cloth and mild soap mixed with water. This removes dirt and grime without damaging the finish.

l Dry the hinges completely after cleaning to avoid moisture buildup.

l Apply a silicone-based spray or a petroleum-based spray like WD-40 directly onto the hinge pin and inside the hinge. These lubricants help the hinge move freely and protect against rust.

l For extra smooth movement, you can also use paraffin or wax on the hinge knuckles.

l Open and close the door several times after applying lubricant. This spreads the lubricant evenly and ensures smooth operation.

l Wipe away any extra lubricant to prevent dust from sticking to the hinge.

TDC Hinges uses stainless steel and advanced finishes that resist corrosion. This means you spend less time worrying about rust and more time enjoying reliable door movement. Regular cleaning and lubrication are simple maintenance tips that extend the life of your hinges.

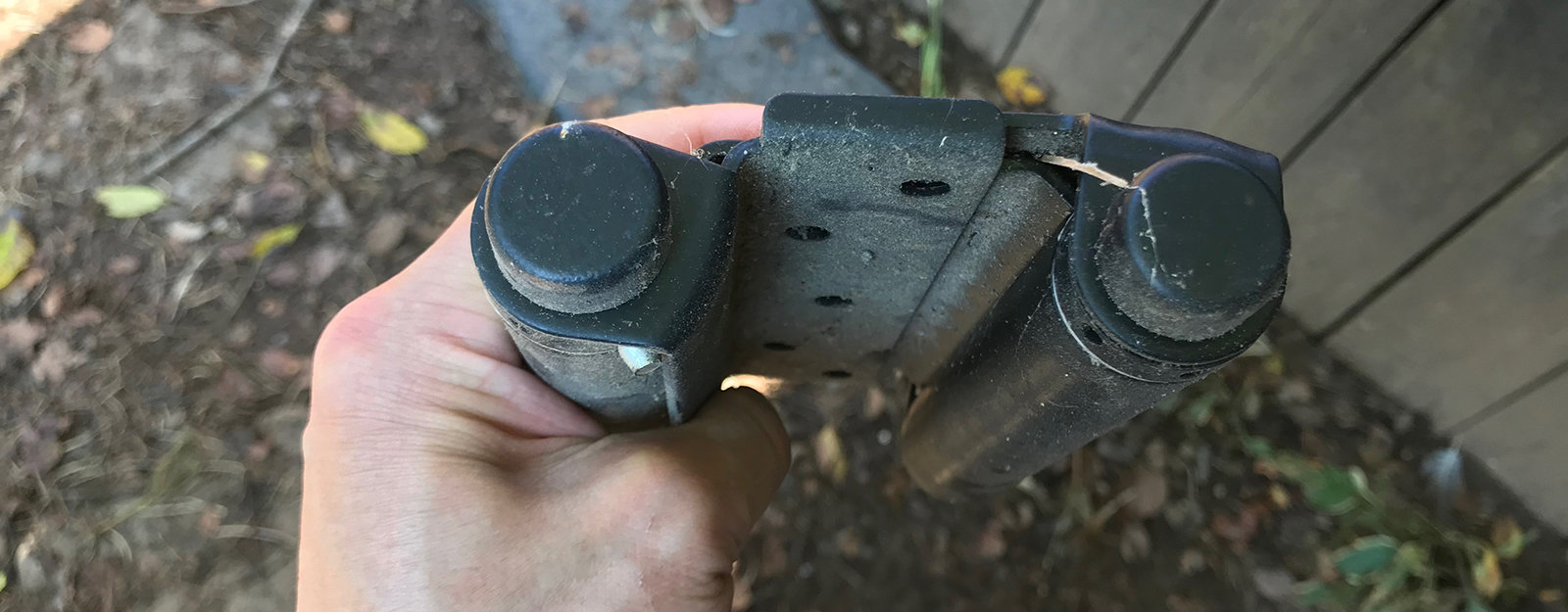

When to Replace Hinges

Sometimes, cleaning and adjusting are not enough. You may need to replace your double action spring hinges if you notice certain signs:

1. The door still has problems after you adjust the hinge tension.

2. You have installed the recommended number of hinges, but issues remain.

3. The door sags even though you used the correct hinge size and grade.

4. The door hangs level, but problems continue, which may mean the hinge is defective.

If you see these signs, it is time to replace the hinges. TDC Hardware designs its hinges with heavy-gauge steel, stainless steel, and powder-coated finishes. These materials offer excellent durability and corrosion resistance, making them ideal for both indoor and outdoor use. You can trust TDC Hardware hinges to last longer and perform better, even in high-traffic or harsh environments.

Choosing high-quality hinges from TDC Hardware means you get products built for long-term use and minimal maintenance.

Choose TDC Hardware for reliable, durable hinges. If problems persist or the door is damaged, consult a professional for expert help.

FAQ

How often should you adjust double action spring hinges?

You should check and adjust your hinges every six months. High-traffic doors may need more frequent adjustments for smooth and safe operation.

What lubricant works best for double action spring hinges?

Use a silicone-based spray, paraffin, or petroleum jelly. These options keep your hinges quiet and prevent rust. Avoid heavy oils that attract dust.

Can you install double action spring hinges on any door?

You can install these hinges on most wood or metal doors. Always check the door’s weight and thickness to match the hinge specifications.
